Metso Crusher Spare Parts & Professional Global Maintenance Service
Full set of upgraded Metso wear vulnerable parts, 100% OEM dimensional compatibility, with professional equipment maintenance and remote technical guidance service for global mining & quarry plants.
About Our Metso Crusher Spare Parts & Total Mining Solutions
Full Range Upgraded Metso Crusher Spare Parts List
All spare parts are 100% dimensionally interchangeable with original Metso crusher and screening equipment, with optional material upgrade and customized casting solutions.
| No. | Compatible Metso Model | Core Spare Parts | Standard Material | Upgrade & Customization Advantage | Notes & Features |
|---|---|---|---|---|---|
| 1 | Metso C Series Jaw Crusher | Fixed Jaw Die, Movable Jaw Die, Cheek Plate | Mn13 High Manganese Steel | Upgrade to Mn18Cr2 alloy, anti-impact performance improved by 25%, suitable for hard granite & basalt crushing | In stock for C80, C100, C125 mainstream jaw models |
| 2 | Metso HP Series Cone Crusher | Mantle, Concave Bowl Liner, Eccentric Bushing, Main Shaft Sleeve | Mn18 Steel / Alloy Steel | Optimized cavity curve + wear-resistant alloy formula, reduce frequent replacement for high-hardness ore | 100% OEM size match for HP200, HP300, HP400 cone crushers |
| 3 | Metso NP Series Impact Crusher | High Chrome Blow Bar, Impact Liner, Side Guard Plate | High Chromium Alloy | Enhanced anti-abrasion formula, solve the problem of easy wear of original parts for river stone & limestone crushing | Stable particle size control, suitable for fine aggregate production line |
| 4 | Metso ST Series Vibrating Screen | 65Mn Screen Mesh, PU Screen Mat, Vibration Spring | 65Mn Spring Steel / Abrasion PU | Thickened screen wire and anti-blocking upgrade, extend service life in humid and sticky material working conditions | Perfect fit for ST3.5, ST4.8, ST6.0 screening equipment |
| 5 | Metso Apron Feeder | Feeder Wear Liner, Apron Plate, Feeder Gear Assembly | High Manganese Steel | Local thickening wear-resistant treatment, improve impact resistance of feeding tank | Reduce equipment failure rate during long-term bulk ore feeding |
| 6 | Metso Nordberg C Series Jaw Crusher | Tooth Jaw Die, Side Protection Plate | Alloy Manganese Steel | Custom tooth pitch optimization according to customer raw ore, improve crushing efficiency | Custom casting processing available for old Nordberg models |
| 7 | Metso MX Multi-Action Cone Crusher | Adjustment Ring, Lock Nut, Thrust Bearing, Sealing Ring | Cast Carbon Steel / Copper Alloy | High-precision grinding process, reduce friction and equipment vibration | Stable operation, effectively extend bearing service life for fine crushing |
| 8 | Metso CI Series Horizontal Impact Crusher | Rotor Tip Plate, Rear Frame Liner, Rotor Shield | High Strength Cast Steel | Upgrade impact resistance structure, avoid liner cracking under heavy mining load | Suitable for large-scale quarry high-intensity crushing work |
| 9 | Metso Mining Screening Equipment | Rubber Damping Pad, Screen Clamp Bolt, Tension Rail | High Elastic Rubber / Alloy Steel | Anti-aging and anti-loosening upgrade, adapt to long-distance high-frequency vibration | Reduce screen body noise and shaking deviation during continuous operation |
| 10 | Metso Full Series Crushing Equipment | Dust Seal Ring, Oil Seal, Hydraulic Cylinder Bushings | Wear-resistant Rubber / Bronze Alloy | High density sealing upgrade, better dustproof and waterproof effect than original factory parts | Protect internal hydraulic bearings, reduce equipment maintenance frequency |
Note: The above list covers upgraded spare parts for mainstream Metso crushing and screening models. We provide full-range OEM compatible replacement and customized casting services for all Metso mining equipment.
Global On-site Service & Delivery Cases for ZenithEquipment
We provide full aftermarket support for all Zenith crusher clients, covering fault diagnosis, equipment maintenance and complete spare parts supply.
Spare parts for Metso crushing equipment shipped to Guangdong
metso HP200 Eccentric Bushing for Indonesia Client

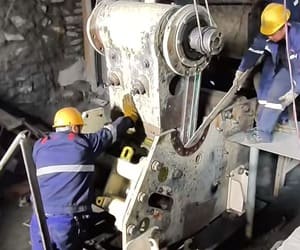

Guided our Metso customer in Uzbekistan to replace the bearings of C-series jaw crusher.

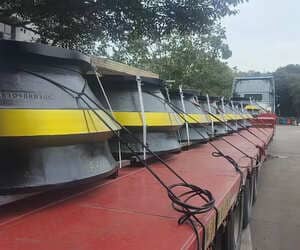

The cone liners ordered by our Metso customer in Fujian, China have arrived at the customer’s site.
Why Us
100% OEM Full Compatibility
Complete Metso & Nordberg drawing library, zero installation error, fully fit original crushing equipment.
Material Upgrade & Cost-effective
Upgraded alloy steel improves wear resistance by 20%-30%, greatly reducing mine annual replacement cost.
Fast Global Delivery
Mass stock for mainstream Metso C/HP/NP/ST series models, avoid long original factory lead time.
Full Lifecycle Technical Support
Provide part model matching, remote installation guidance and on-site overhaul service for global mining clients.
FAQ About Metso Crusher Spare Parts
All our parts are manufactured strictly according to Metso OEM drawings and size standards, 100% interchangeable without modification.
We adopt upgraded Mn18Cr2 high manganese steel and high chrome material, longer service life and lower mining cost with factory direct price.
Most mainstream Metso C jaw, HP/MX cone, NP impact and ST screen wear parts are in stock for fast global shipment.
Custom casting and CNC machining are available for obsolete or special Metso/Nordberg equipment models.
